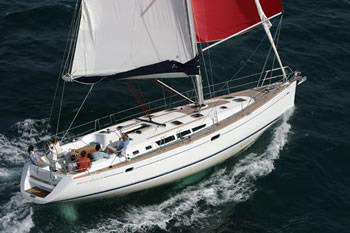

S/Y  JANNEAU SUN ODYSSEY 49 SAILING YACHT CHARTER GREECE


HULL: Reinforced Kevlar®

• Teak interior layouts

KEELS: Deep draft: cast iron keel: 7'

• 8,267 lbs

• Shallow draft: cast iron keel: 5'7"

• 9040 lbs

• Epoxy surface treatment

DECK HARDWARE Stainless steel stem fitting with 2 rollers and swinging bow roller • Open bow pulpit • Stainless steel pulpit with buoy bracket • Double lifelines • Port and starboard lifeline gates • 6 mooring cleats with profiled fairleads • Anchor locker • 1 Leopard 1200 W deck-mounted electric windlass, for 3/8 BBB chain • SPINLOCK jammers and Harken turning blocks for halyards and control lines • 2 Harken 59.2 cockpit coaming winches for genoa sheets • 2 Harken 44.2 roof winches for main, genoa and spinnaker • 2 genoa sheet tracks with adjustable Harken fairleads • Harken genoa sheet turning blocks • Adjustable Harken mainsail traveler on roof • Folding Wichard chainplates on side decks • Teak coachroof and companionway handrails.

COCKPIT / STERN PLATFORM Wide cockpit, teak batten seats and floor, two side lockers • Central pedestal for cockpit table, aft cabin air ventilation and lighting • Propane locker for two bottles (tank not included) • Two wide lockers under helm seats, with access to steering system • Wet locker with teak grating between helm positions • 2 steering wheels, leather wheel covers, compass mounted on white powder-coated aluminum columns • Vertical engine control lever in starboard helm station • Cockpit table with folding sides, central storage and cup holders • Handrail on cockpit table with lighting • Room for electronics at each helm station and under cockpit table • Access to transom skirt via 2 fiberglass doors • Teak batten stern platform steps and floor • Cockpit shower • Sliding swim ladder with teak steps

STEERING Twin steering wheels, self-aligning rudder bearings • Stainless steel cable steering, molded aluminum quadrant • Fiberglass rudder with stainless steel frame and shaft • Rudder tube fiberglassed to hull

MAST / RIGGING Classic aluminum mast • Twin spreader configuration • Discontinuous rigging • Double backstay with bridle • Profurl genoa furler, below deck drum • Rigid boom vang and all halyards led to SPINLOCK blockers at cockpit • Harken halyard lead blocks on mast base • Folding mast steps • Deck light • Spinnaker pole rail on front of mast (optional pole and car) • Boom topping lift, mainsail halyard, genoa halyard, spinnaker halyard • Set of sheets for main and genoa • Eyelets for flag halyard • 1 full batten mainsail • Dacron furling genoa with foam luff • Lazy bag + lazy jacks • Windex

INTERIOR LAYOUT
4 cabin/4 head version: 2 forward cabins convertible into 1 main cabin and 2 aft cabins convertible into 1 big cabin

DESCRIPTION OF THE TWO MODULAR AFT CABINS: Removable longitudinal bulkhead for conversion into cabin with large central bed • Wood hull liner, light-colored fabric ceiling liner • Side hanging lockers, side storage shelving along the hull and under companionway • Teak flooring • Storage for modular elements under berth

DESCRIPTION OF THE TWO MODULAR FORWARD CABINS: Removable longitudinal bulkhead for conversion into cabin with large central bed • Wood hull liner • Side hanging locker, side storage shelving along the hull, under-bunk drawer and storage • Space for bow thruster (optional bow thruster) • Teak flooring • Storage for modular elements under berth

HEAD ON THE 4-CABIN VERSION: Molded polyester washroom furnishing • Large size marine toilet with manual pump • Hot and cold water shower taps • Shower drainage pump with switch • Stainless steel washbasin with Antium countertops (beige) • Under-sink storage and access to thru hulls • Clothes hooks, mirror, towel holder, toilet roll holder • Storage with door above sink • Stainless steel 12 gal. holding tank • Plastic grate, folding seat over toilet • Grabrail in front of basin cabinet

NAVIGATION STATION ON 4-CABIN VERSION: Main electric panel, access to connections • Side storage with bookshelf, access to fire extinguisher and battery isolator • Wide folding central panel • Space for radar screen, chart plotter, and other instruments • Traveler post handrail

SALON AND LOUNGE Raised, large U-shaped salon to starboard • Central bench seat with bar and storage • Access to batteries under seating • Solid dining table with fiddles and central storage • 2 removable table legs for conversion into double berth (optional) • Upper storage cupboards, storage areas under seating • Hi-fi system in upper cupboard, behind sliding doors

GALLEY Fore-and-aft galley to port • Laminated counter combining icebox tops with lids, foldaway cooker top, twin-basin sink with removable covers • 60 gal. icebox access from top and front with storage bins • Gimbaled stove/oven unit • Foot-operated pump for sea and fresh water • Upper cupboards for microwave oven (optional), crockery and stowage • Three drawers including cutlery stowage, door-mounted trash bin • Storage shelving with sliding doors, below upper cupboard • Stainless steel handrail built into front of galley units • Mixer tap
